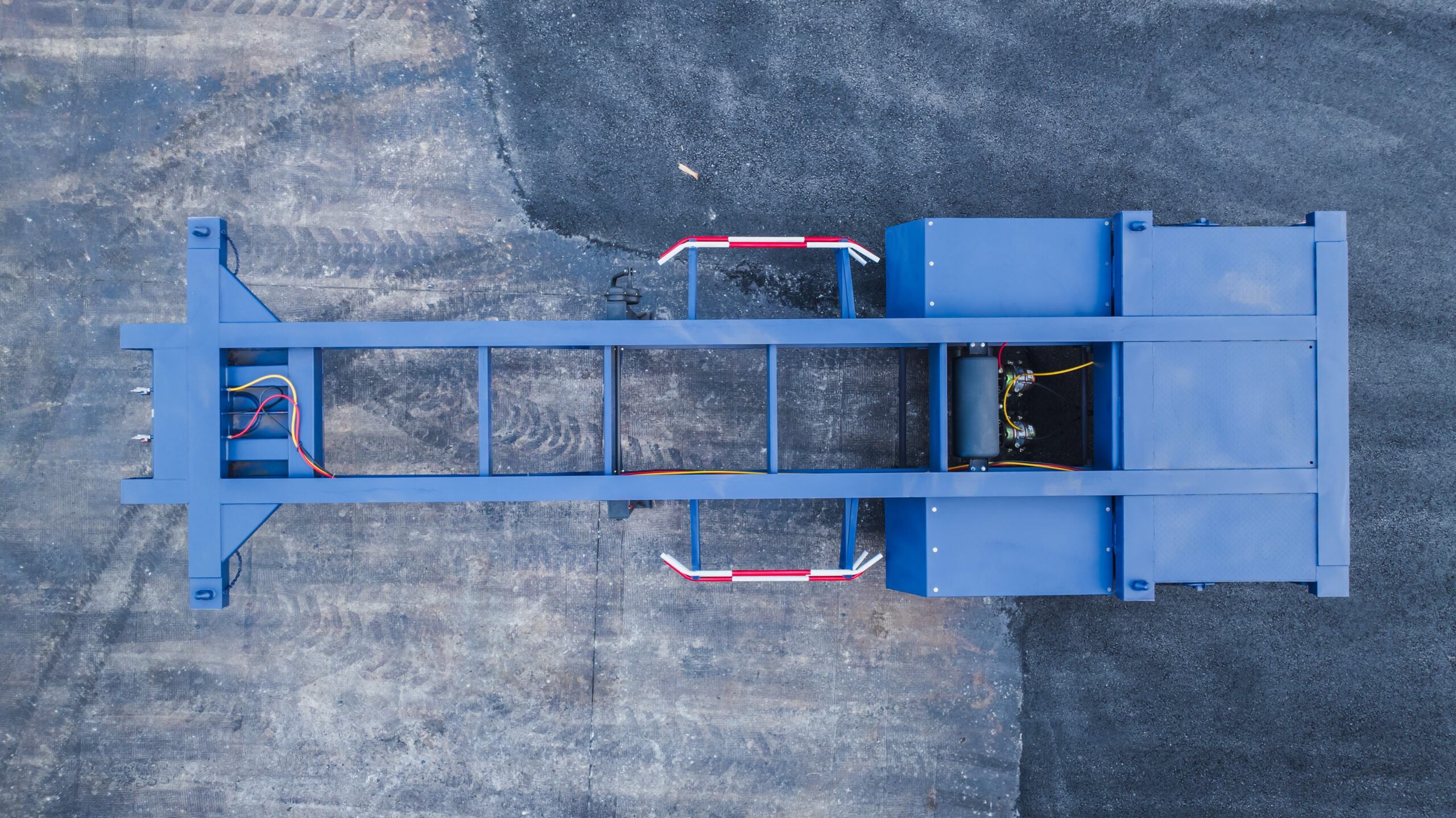

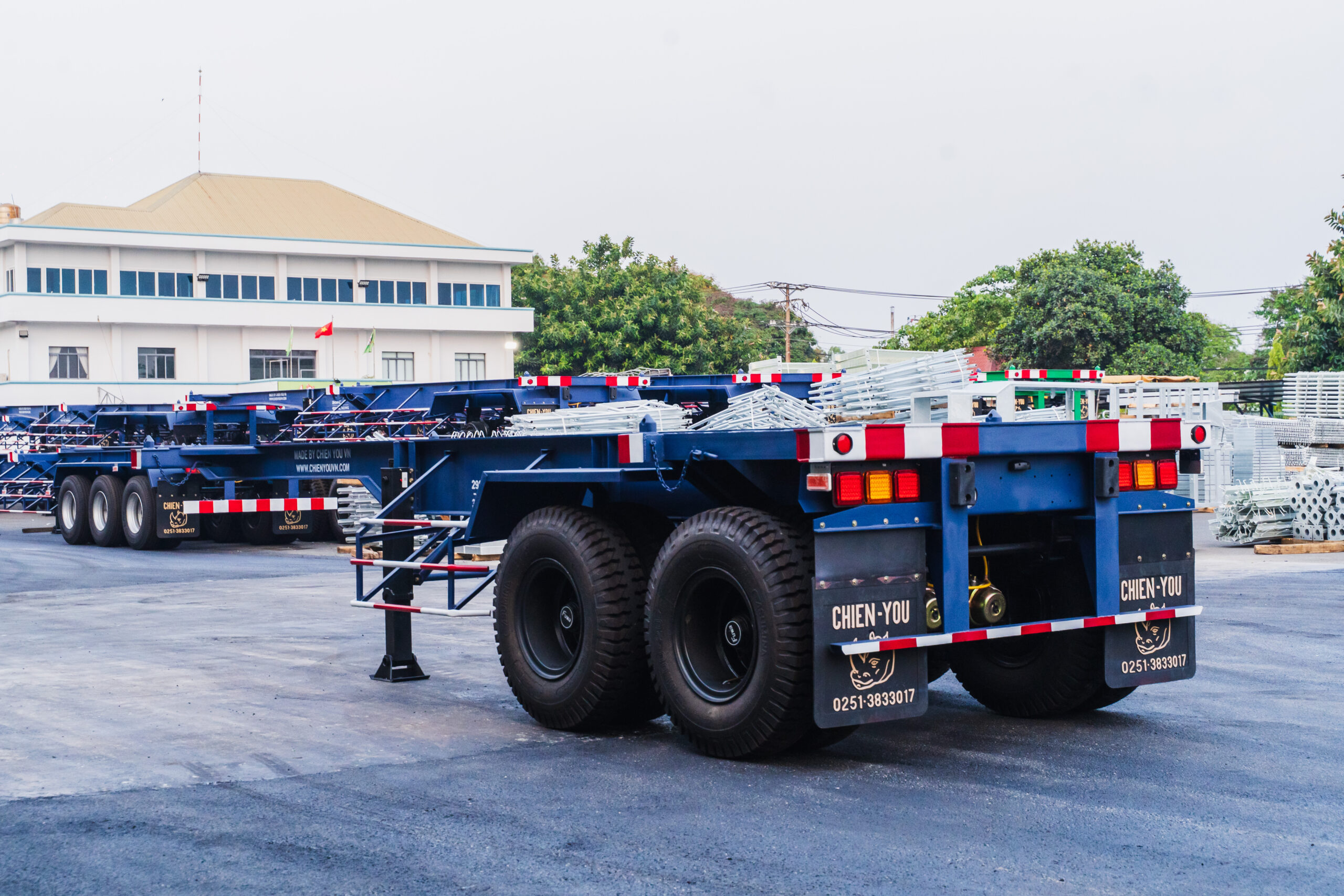

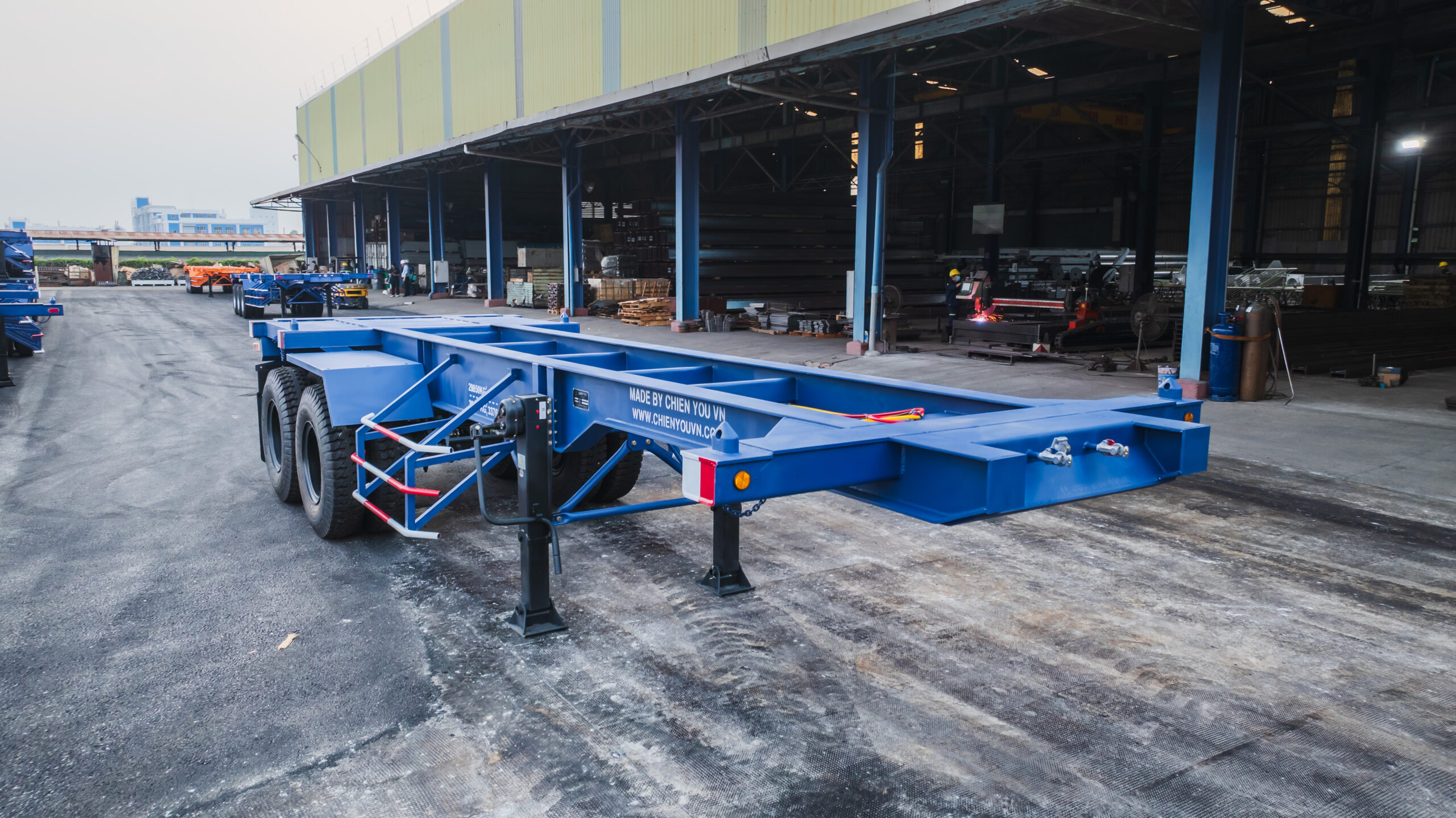

Skeleton Semi-trailers – CYSCD 10

General information

Brand number: CHIEN YOU - SKU: CYSCD 10

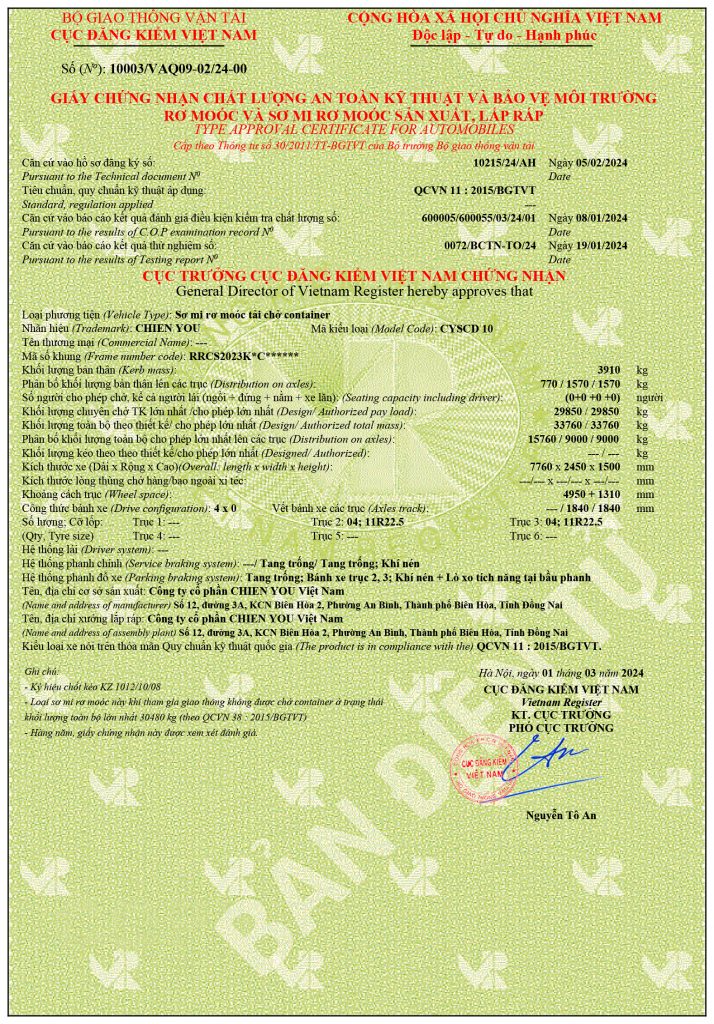

ISO No: 10003/VAQ09-02/24-00

🔶 Cast steel h beam SM 490 YA, thickness 40LB: greater load-bearing capacity.
🔶 Torque arm system, spring seat, twistlocks – solid cast steel SCW49: can help reduce fuel consumption and costs.
🔶 Braking system – sealco relay valves, USA: safety, stability control.
📌 OUTSTANDING ADVANTAGES:
✅ Safe and stable, the chassis system is not eccentric due to the monolithic beam design, reducing fuel consumption and tire wear.
✅ Super sensitive braking system, absolute safety.
✅ Quick warranty and maintenance, peace of mind in operation

20 feet 2 Axles 4 twistlocks
Length x Width x Height 7.760 x 2.450 x 1.500 mm
Wheelbase 4.950 + 1.310 mm
Kerb mass/ Payload/ Total load 3.910 Kg/ 29.850 Kg/ 33.760 Kg
Main Beam CAST STEEL H Beam SM 490 YA, Thickness 40LB
Kingpin JOSTbolt type
Landing gear FUWA 28/80 tons, 2-speed manual
Torque arm system, Spring seat, Twistlocks Solid cast steel SCW49
Axles FUWA 13 tons, 10 bolt
Suspension systems 1.100 x 100 x 12mm x 10 leaf spring
Wheel 8.25 x 22.5 x 10 hole
Tires DRC, CASUMINA, Road X, DYNAMO 11R22.5 16PR
Spring brake chamber Seat 1, 2 (2 floor)
Braking system Sealco relay valves, USA
Paint Spray blasting to SA2.5, 2 coats of primer, coating as required
